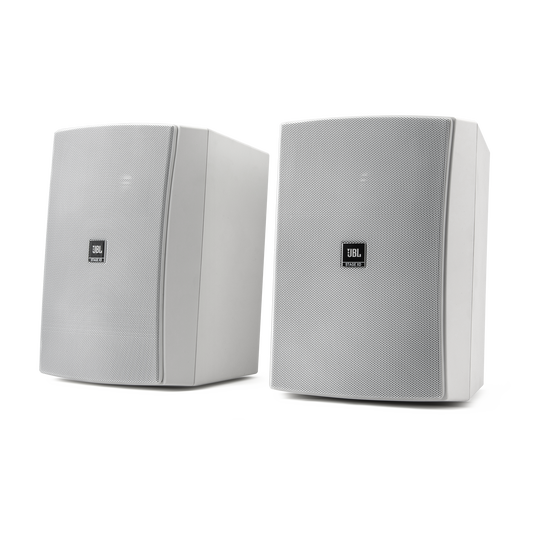

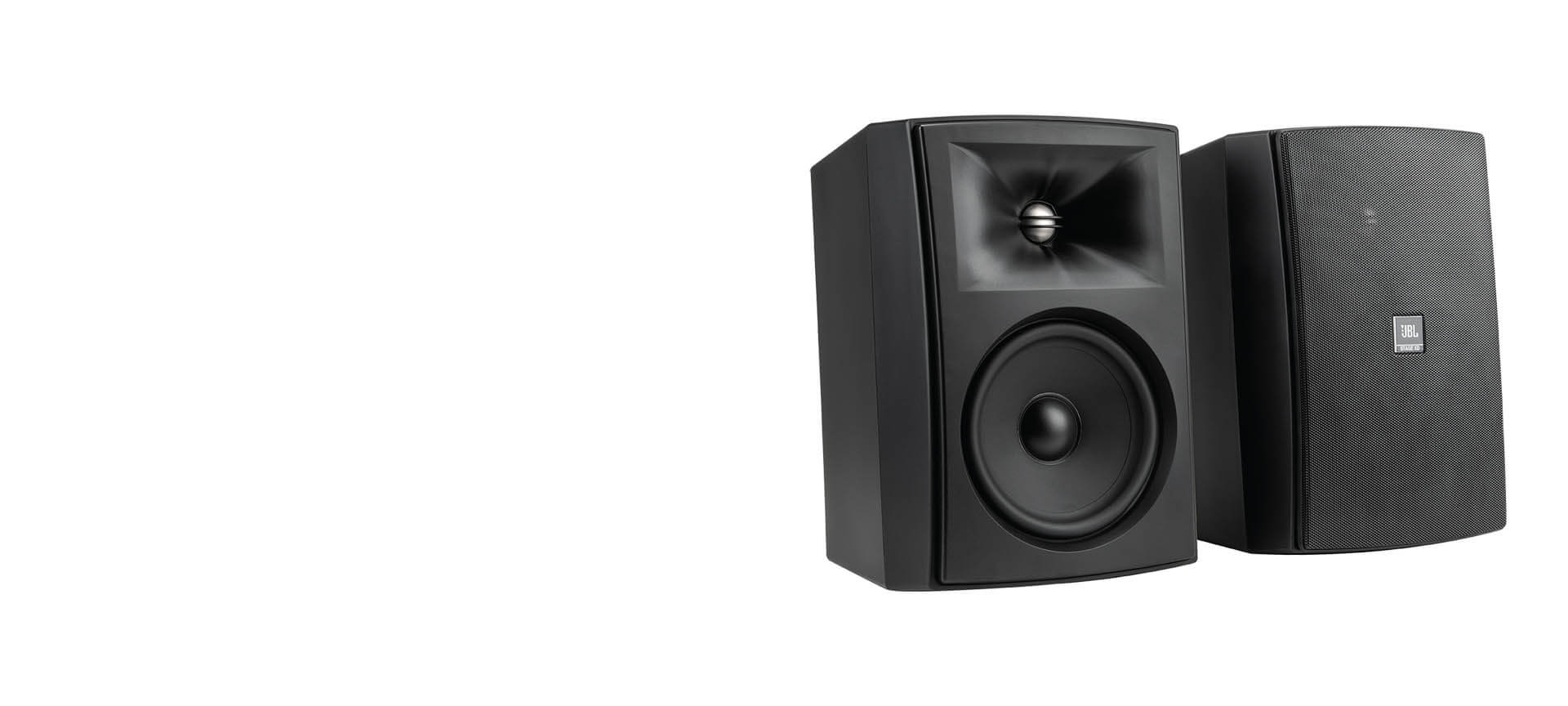

Stage XD-6
(税込) / ペア

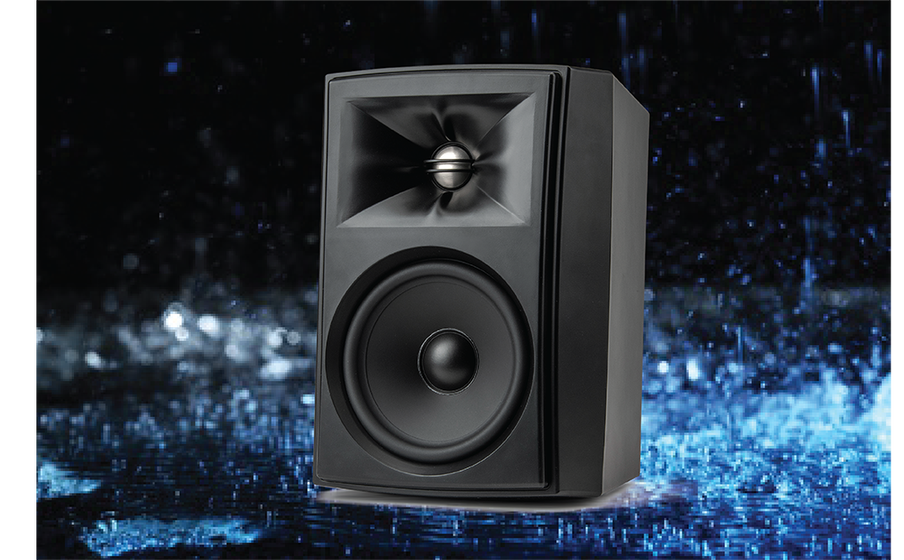

Stage XD-6 IP67 Waterproof rating provides protection from the harshest of outdoor conditions - Image

IP67 Waterproof rating provides protection from the harshest of outdoor conditions

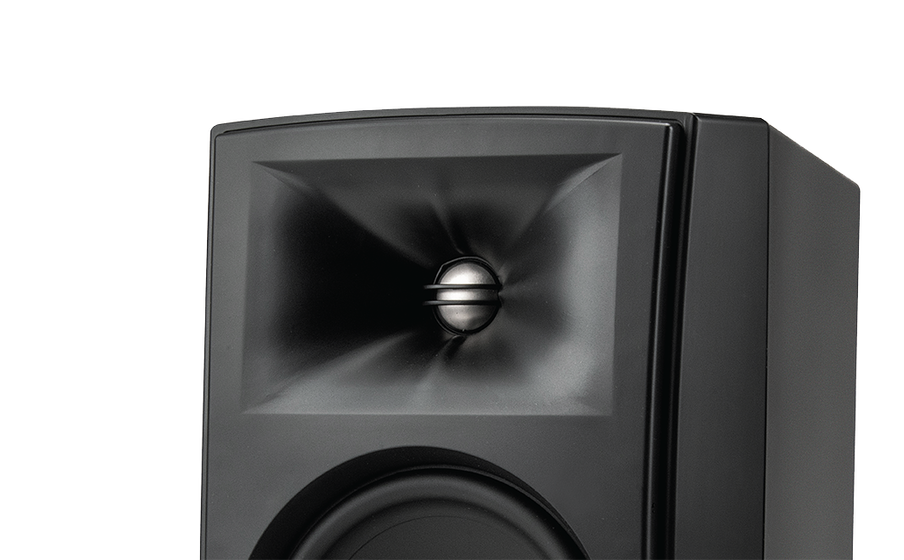

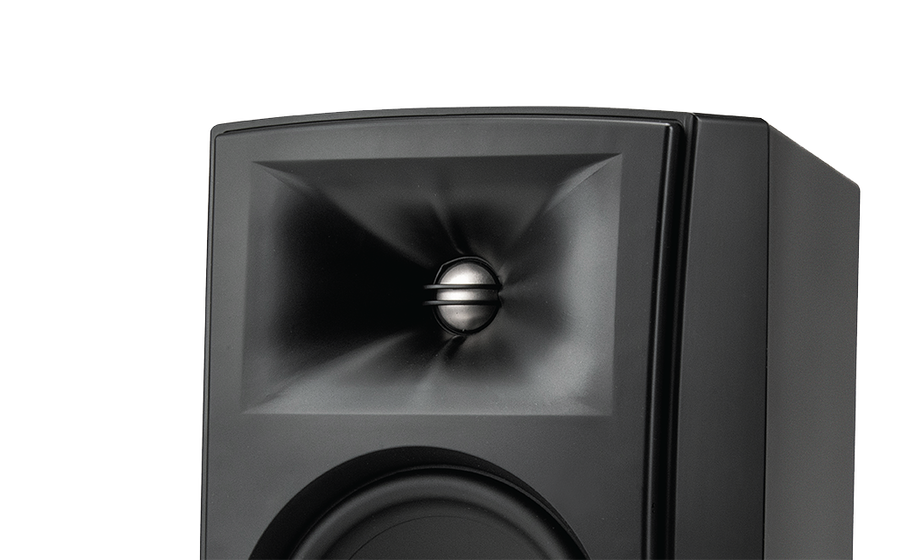

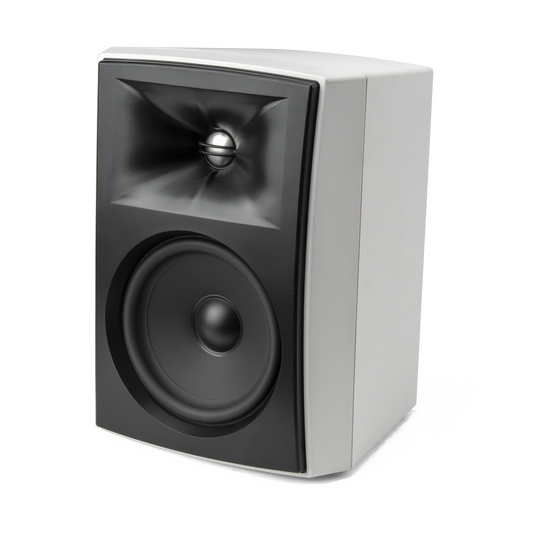

Stage XD-6 High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion - Image

High-Definition Imaging (HDI™) waveguide with optimized geometry for smooth dispersion and low distortion

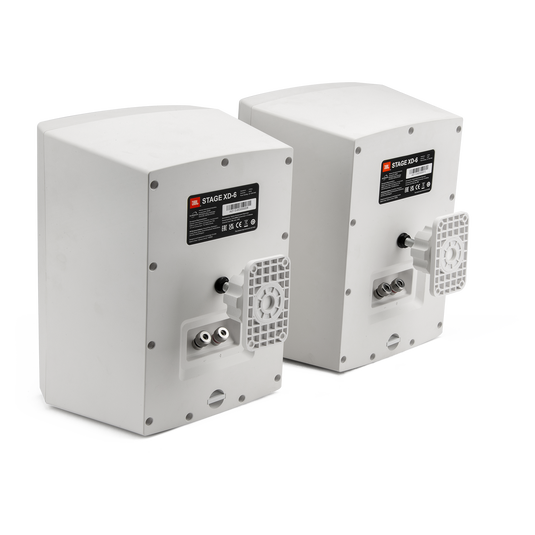

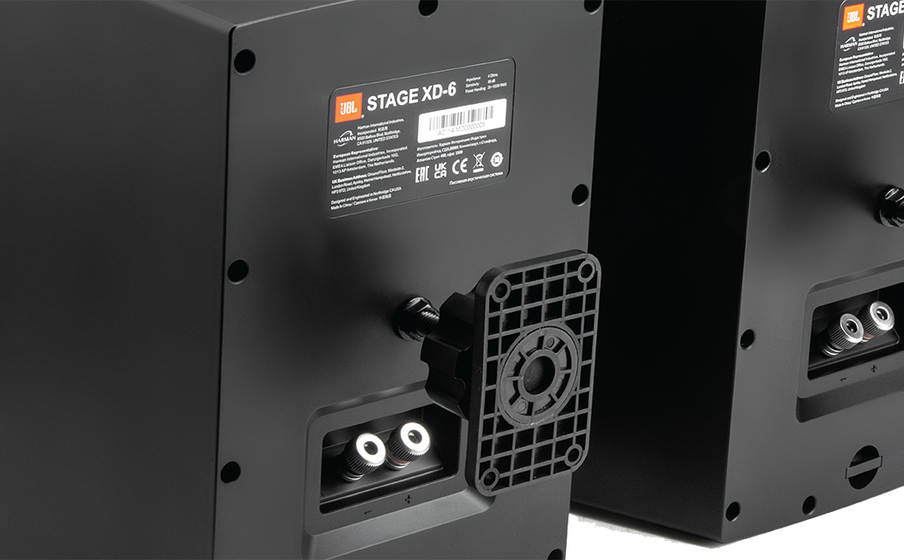

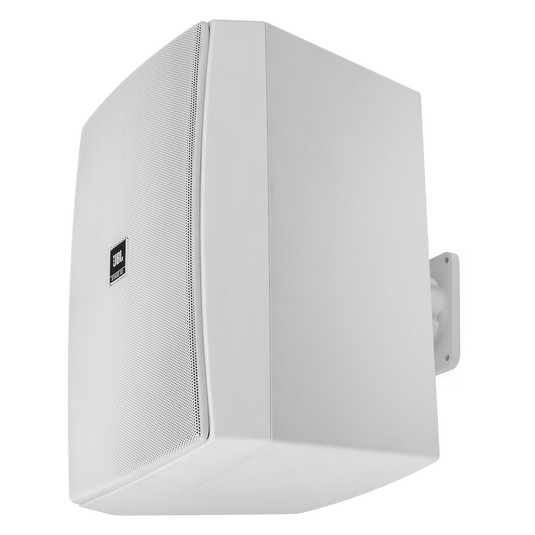

Stage XD-6 Included wall-mount bracket allows for easy installation and angle adjustment - Image

Included wall-mount bracket allows for easy installation and angle adjustment

特徴

Stage XD-6 Polypropylene Graphite Filled Cone Woofer - Image

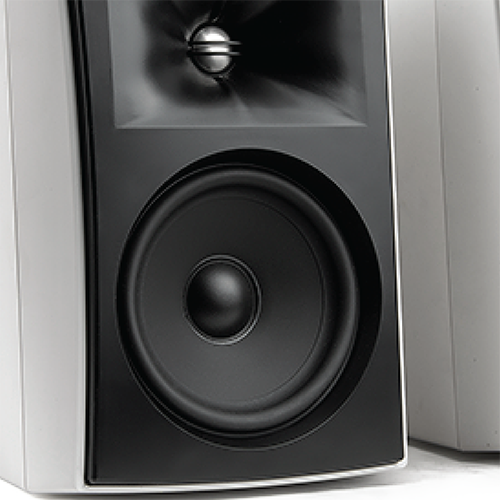

Polypropylene Graphite Filled Cone Woofer

Stage XD-6 Zero bezel magnetically attached grilles - Image

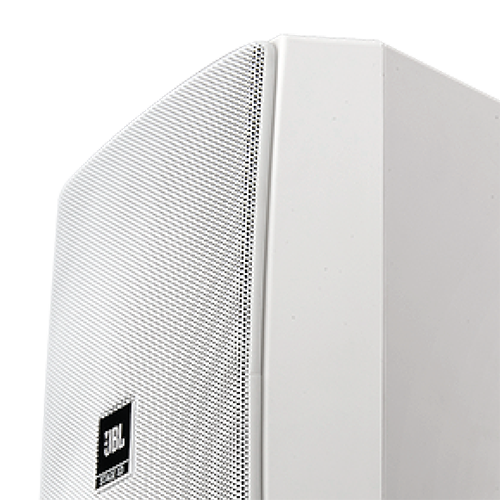

Zero bezel magnetically attached grilles

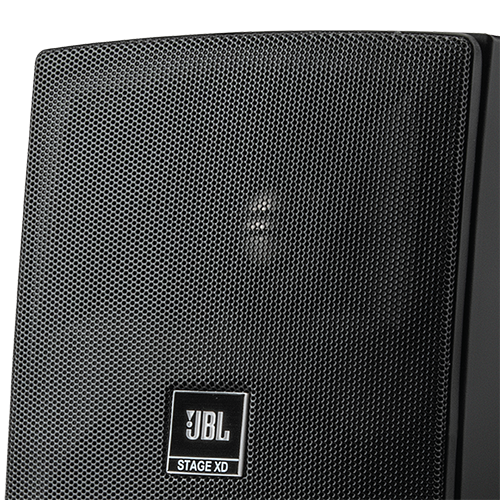

Stage XD-6 Rotatable logo for horizontal and vertical applications - Image

Rotatable logo for horizontal and vertical applications

仕様とダウンロード

Item#: JBLXD6WHT

仕様一覧

Product Type
2-way 6.5" (165mm) Indoor/Outdoor All Weather Loudspeaker
Weatherproof Rating
IP67
High Frequency Transducer
1" (25mm) Aluminum dome with High-Definition Imaging (HDI™) waveguide
Low Frequency Transducer
6.5" (165mm) Polypropylene Cone Woofer
Nominal Impedance
6 ohms
Sensitivity (2.83V@1m)
88dB
Recommended Amplifier Power
20-100W RMS
Frequency Response (-6dB On-Axis)
55Hz-25kHz
Crossover Frequency
2500K
Operating Temperature
-31° F (-35° C) to 167° F (75° C)
Product Dimensions (HxWxD)
11.8in (299mm) x 8.7in (221.8mm) X 7.7in (194mm)
Product Weight
2.9lbs (6.5kg)
Wall Mount Extension
2.8in (71mm)
Beauty Carton Dimensions (HxWxD)
14.7in (373mm) x 19.6in (496mm) X 10.9in (276mm)
Beauty Carton Weight
15.5lbs (7kg)
Beauty Carton Quantity
1pr
Master Carton Dimensions (HxWxD)
15.5in (393mm) x 33.4in (848mm) X 20.1in (510mm)
Master Carton Weight
48.5lbs (22kg)
Master Carton Quantity
3pr
